PAX

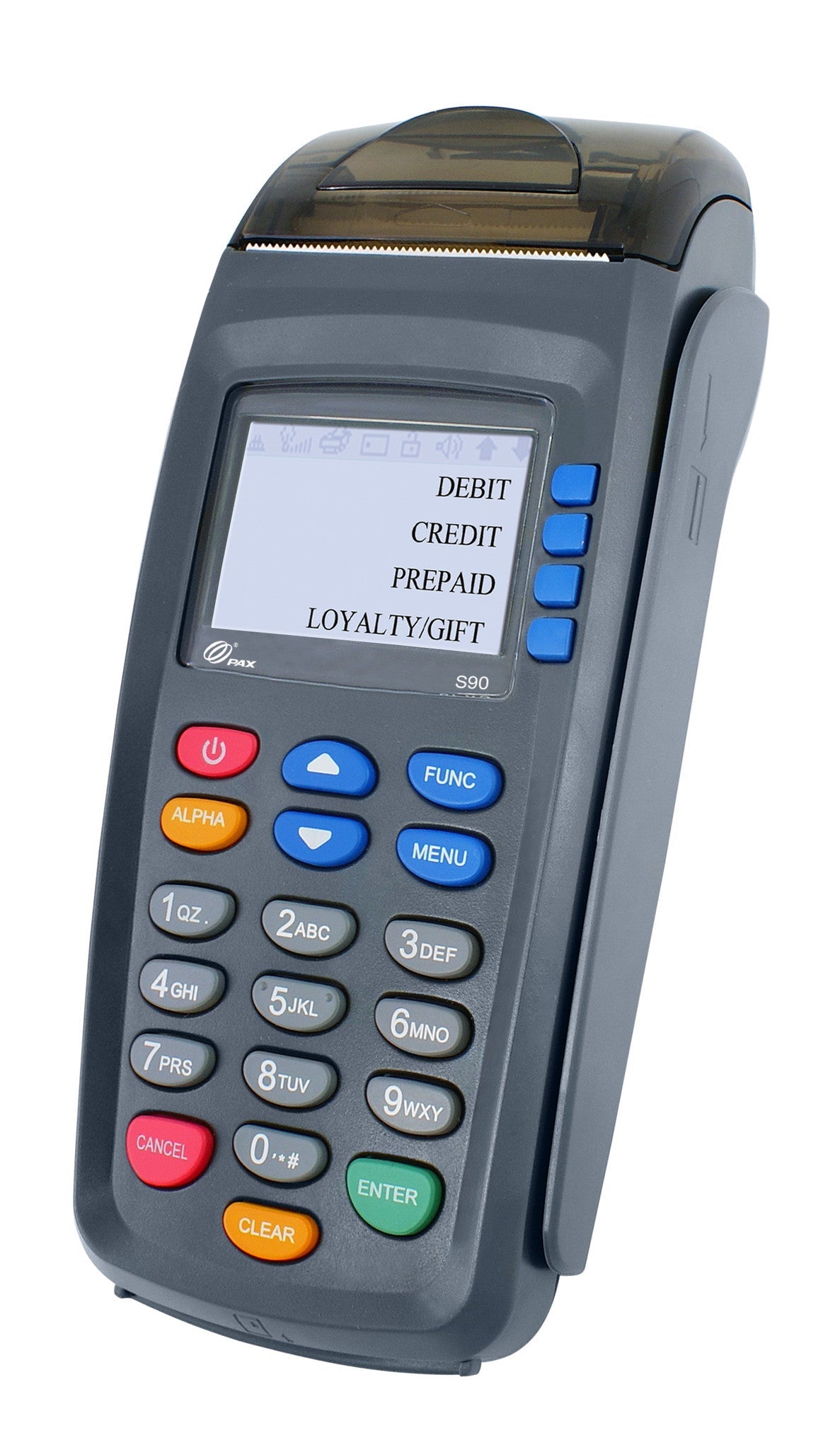

PAX S90 gprs 3G with EMV and Contactless (S90-MW0-063-01EA)

PAX S90 gprs 3G with EMV and Contactless (S90-MW0-063-01EA)

Regular price $339.00 USD
Regular price $505.99 USD Sale price $339.00 USD
Sale Sold out
Title

PAX's S90 is an advanced countertop POS terminal which combines innovation and high performance to assure, faster, more reliable transactions.

The PCI PTS 2.1 approved S90 offers advanced connectivity, equipped with various communication technologies. An intuitive ATM-style interface and ergonomic keypad make operation easier for merchant and consumer alike. The S90 can support multiple payment and value-added applications, making this one of the most reliable and advanced devices in the market.

Full PAX S90 Product Details

Processor 32-bit ARM11

Memory 192MB (128MB Flash, 64MB SDRAM)

Display

128 x 64 pixel LCD, White backlit

Keypad 10 numeric / letter ; 8 function keys 4 ATM keys, 1 Power ON / OFF key

Printer

Thermal printer, Speed: 25 lps Standard paper roll: 58mm (2.25 in.)

Magnetic Card Reader

Track 1 / 2 / 3, bi-directional, ISO7812

Smart Card Reader

1 user card, EMV

Contactless Card Reader (built-in)

Card Slots

3 SAMs, ISO7816 Communication

Modem: Sync. (HDLC up to 9600bps); Asnyc. (V.92, up to 56kbps) Ethernet (optional)

Peripheral Ports

1 x PINPad, 1 x RS232, 1 x Ethernet, 1 x Line, 1 xmini USB (OTG)

Security

PCI PTS 3.x approved DUKPT, Master / Session, DES, 3DES ANSI / ISO9564 format 0,1,3 PIN ciphered key algorithm ANSI X 9.9 / X 9.19 MAC algorithm

Voltage

Input: 100~240VAC,50Hz / 60Hz, 1.5A Output: 8.2VDC, 3A

Physical

Length: 216mm (8.5 in.) Width: 95mm (3.74 in.) Height: 86 mm (3.390 in.)

Weight

525g
