- Dial & IP
- 64 MB Memory
- Customized Menu with Up to 20 Programmable Hot Keys
- Multiple Merchant with Multiple Host
- Secure Internal PIN Pad or External PIN Pad option

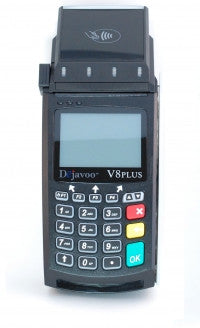

DEJAVOO Vega Model V8 S Plus EMV & NFC (Contactless Reader) (N-DEJAVOO-V8S Plus)
DEJAVOO Vega Model V8 S Plus EMV & NFC (Contactless Reader) (N-DEJAVOO-V8S Plus)
Regular price
$255.00 USD
Regular price
$310.00 USD
Sale price
$255.00 USD
Unit price
/
per
Model Number: N-DEJAVOO-V8P
OEM Part Number: Dejavoo V8Plus
Need to get it encrypted to take pin number debit? Encryption service only $35!
Vega Model V8Plus - Dual Comm plus Integrated Contactless Reader - EMV capable
Processor:
32 bits secure Microprocessor
Display:
128 x 64 graphical LC with
white backlight
SAM: 4 SAM Slots
Peripherals:
RS232, USB Host
Key Pad:
Standard 15 Keys EMV backlit
keypad
Communication:
Modem - V.90 bis Fast Connect
Modem and Support Sync HDLC
Ethernet 10/100 Ethernet
ZigBee Optional
RS232 Communication speed
up to 115200 bps)
Power:
Battery: Li-Polymer 7.2V/1A
built in battery charger with
protector
Base: Input: AC100V/240V
50/60 Hz 2A Adaptor Output:
9V/5V
Memory:
Internal Memory Flash 32M,
SDRAM 32M, SRAM:2M (Optional)
External Memory Micro SD
Socket
Card Readers:
Magnetic Strip - Triple track, Bi
directional
Smart Card - 1.8V/3V/5V smart
card, ISO7816 Class A, B and C
Contactless: Milfare??, ISO 14443
Type A/B, Working Frequency 13.56
MHz (optional)
Crypto:
TNG, DES, TDES, AES, RSA, MK/SK,
DUKPT, TDES DUKPT
Dimensions:
Handset:175mm(L) x 79mm(W) x
62mm(H)
Base: 149mm(L) x 75mm(W) x
40mm
Printer:
100 mm/sec
Paper Width 2.25
Max paper roll 50
