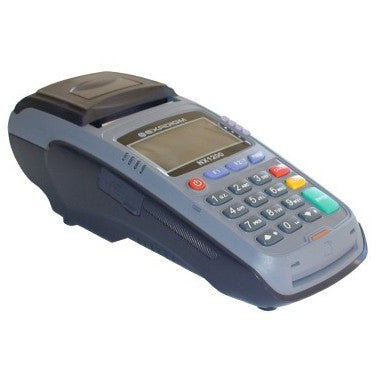

ExaDigm NX1200 V3, EMV, NFC (TNLA041.000)

The new ExaDigm NX Series of Payment Terminals encompasses both mobile, countertop and PINPad, and brings in the latest innovations in payment security, wireless networks and user friendliness, for faster, secure transactions and utmost mobility.

The ExaDigm NX1200 countertop payment solution offers secure and reliable transactions, easy software upgrades, and simple configuration to adapt to all business environments, all resulting in a low cost of ownership.

Fully compliant to payment industry standards, packed with powerful features, user friendly, and backed with unparalleled customer support, the ExaDigm NX1200 helps unleash the performance of your business to reach higher levels of profitability and growth.

ULTIMATE SECURITY

• Built-in PA-DSS certified security engine for the highest secure payment processing
• PCI PED certified pinpad

SCALABLE and FLEXIBLE

• Multi Application capability
• Expandable memory
• Software development kit (SDK)
• Easy remote configuration and management (Terminal Management System (TMS))

USER FRIENDLY

• Ethernet / WiFi / Bluetooth / Dial options
• Magnetic and Smart Card readers
• Integrated printer

ALWAYS ON

• 24/7 customer support

Go back to Electronic Payment                                     Solutions

   NX1200 Overview

   NX1200 Specifications

   NX1200 Accessories

   Tools

Need documentation?

Visit our Library

Processor

• 400Mhz ARM9 32-bits processor with built-in Security Engine

___________________________

Memory

• 128MB Flash
• 64MB RAM

___________________________

Display

• 128x64 monochrome screen
• Adjustable backlight

___________________________

Keypad

• 10 alphanumeric keys
• 2 function keys

___________________________

PINPad

• PCI PTS 3.0 approved

___________________________

Printer

• Integrated thermal printer with graphics capabilities
• 24 or 32 columns, multi-language font capability, double-high/double-width scalability
• Standard 2 ¼” (58mm) paper roll
• Easy Open/Load mechanism

NX1200 SPECIFICATIONS

Magnetic Card Reader

• Triple track (tracks 1/2/3)
• High coercive
• Bi-directional

___________________________

Smart Card Reader

• ISO 7816, 1.8V, 3V, 5V synchronous and asynchronous cards
• EMV Level 1 & 2 certified

___________________________

SAM Card Slots

• 4 Security Access Modules (SAMs)

___________________________

Communication

• 100Mbps Ethernet
• Dial up
• Optional:

  Cellular: CDMA / GSM

WiFi: 802.11 b/g/n

___________________________

Peripheral Ports

• Ethernet
• 1 x RJ45
• 1 x RJ11
• 1 x RS-232
• 1 x USB
• 1 x Mini USB

Security

• SSL 3.0 and TLS 1.0 encryption support
• PCI PA-DSS validated payment applications
• 3DES encryption, DUKPT key management
• PCI PTS 3.0 certified
• EMV Level 1 & 2 certified
• WPA-2 enabled WiFi

___________________________

External Power Supply

• Input: 100V – 240V, 50Hz – 60Hz
• Output: 8.5V, 2.5A

___________________________

Device’s Dimensions

• Length: 9” (230 mm)
• Width: 3 ¾” (97 mm)
• Height: 3” (75 mm)

___________________________

Packaging Dimensions and Weight

• Length: 7 7/8 ” (200 mm)
• Width: 10 1/4 ” (260 mm)
• Height: 4 1/2 “ (115 mm)
• Weight: 2.2 lbs (998 g)

___________________________

Environmental

• Operating temperature: 0oC – +50oC / Humidity: 10%  90% without condensation
• Storage temperature: -20oC – +50oC / Humidity: 5%  95% without condensation
