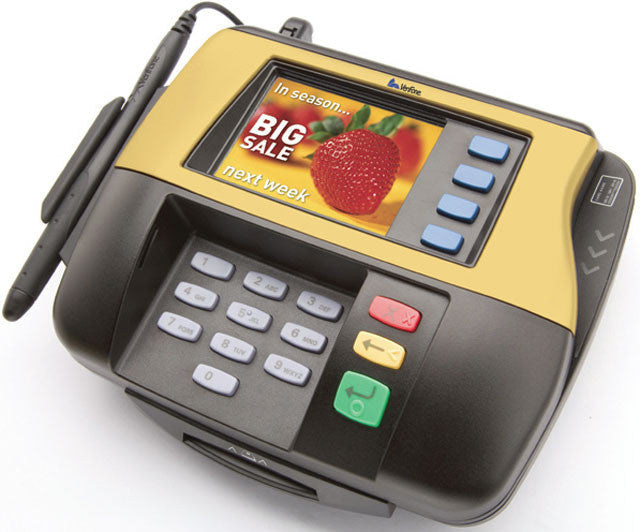

Verifone MX850 EMV - Color Screen Signature Capture Pin Pad (M094-209-01-R)

**All pin-pads must be physically injected with a security key to function. This can be done by your Processor or Click Here for Injection Services Offered by POS Powerhouse.**

Designed for demanding multi-lane environments, the MX850 has a powerful payment processing engine, a convenient keypad for secure PIN entry, an ultra-crisp color display, and outstanding durability making it the clear choice for retailers. The PCI PED approved MX850 securely handles transactions in seconds, while also delivering a dazzling array of brand reinforcement, cross-promotional messages and even consumer disclosures directly to consumers. With its scratch-resistant touch screen, non-mechanical stylus, customizable trim plate and laser-etched keypad, the MX850 is built to last for years. Field replaceable modules, expansion slots, and a USB port further future-proof the MX850 and allow the addition of contactless and smart card payment or other capabilities as new technologies emerge.

Mx 850 FULL Specifications

Specifications:

Processor
32-bit 200 MHz

Operating system
Embedded Linux with Verifone
security enhancements; MX platform


Applications
Form Agent, IBM EFT, NCR EFT


Memory
32 MB SDRAM + 32 MB Flash
Field upgradeable via USB Flash memory drives


Display
16-shade grayscale, backlit, ¼ VGA resolution


Graphics
Built-in animation capability


Audio
Multi-tone buzzer


Keypad
Recessed for privacy
13 laser-etched tactile keys +
4 screen-addressable ATM-style keys

Touch Screen
Chemically-hardened glass
Capacitive technology
Factory option

Signature Capture
Field upgradeable option (with touch screen)

Stylus Pen
Non-mechanical
Field upgradeable option

Magnetic Card Reader
Triple-track, bi-directional
Software-controllable LED prompt

Smart Card Reader
None

Contactless
ISO 14443 AB certified
Optional, field upgradeable module

Connectivity / Communications
Cable: supports Verifone multiport cables with cable sensing
USB: Device and Host capability
Ethernet: 10/100BaseT (factory option)
Serial Interfaces: RS-232, RS-485,
IBM Tailgate

Security / Encryption
Master Session
DUKPT
Triple DES
